ecoLENS industry
An energy-efficient LED general light fixture for mounting on cable trays, thick suspended ceilings or under cables. Excellent choice for light industrial/warehouse and retail environments.
Interchangeable lens optics with very high efficiency for different ceiling heights from 3 to 7 meters.
The luminaire can be obtained in various power / lumen designs with a maximum of 9,500 luminaire lumens.

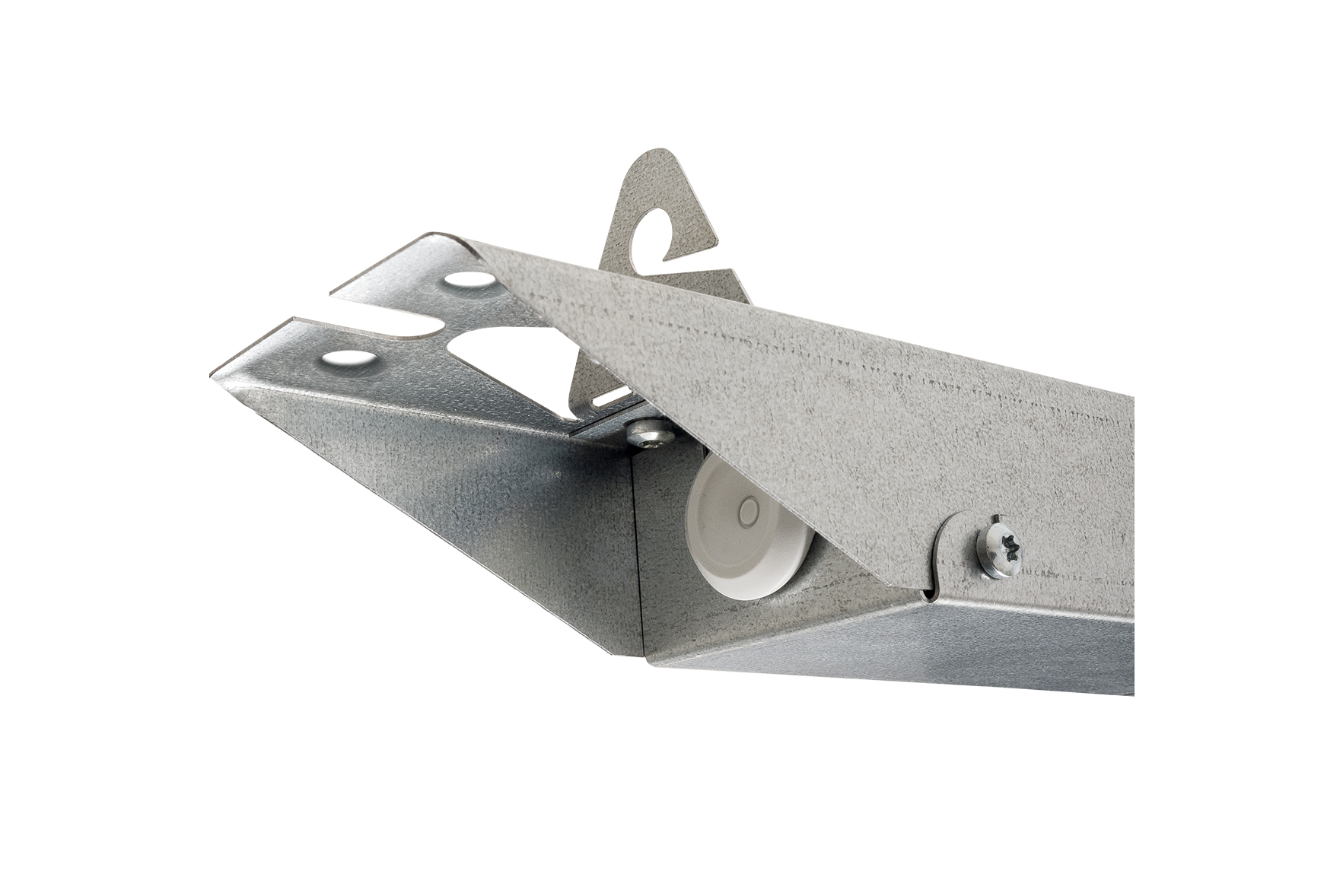

Luminaire equipped with 5×2.5 mm2 over-coupling and wiring through the ends. Easy installation thanks to fold-down end caps on each side that enable installation of cable on already pre-assembled luminaire.
Frame in galvanized sheet steel.
Technical data
Material: Galvanized steel sheet
Height / Width / Length: B 63 mm / H 50mm / 1825 mm
Energy consumption: 39 - 62 W
luminaires: 9 500 lm ( @ 62 W )
Color temp [K]: 3000 K / 3500 K / 4000 K
Connection: 2 x Plint 5x2,5 mm2
Nominal voltage: 230/240 V, 50 Hz
Protection class: IP21. Class I. CE approved.
