csNET is a 3-phase quick connect system manufactured and distributed by Caleidoscope Systems AB.

The application area is many, but above all the system is suitable for different types of ceiling installations where you want a fast and reliable system for supplying your lighting system.

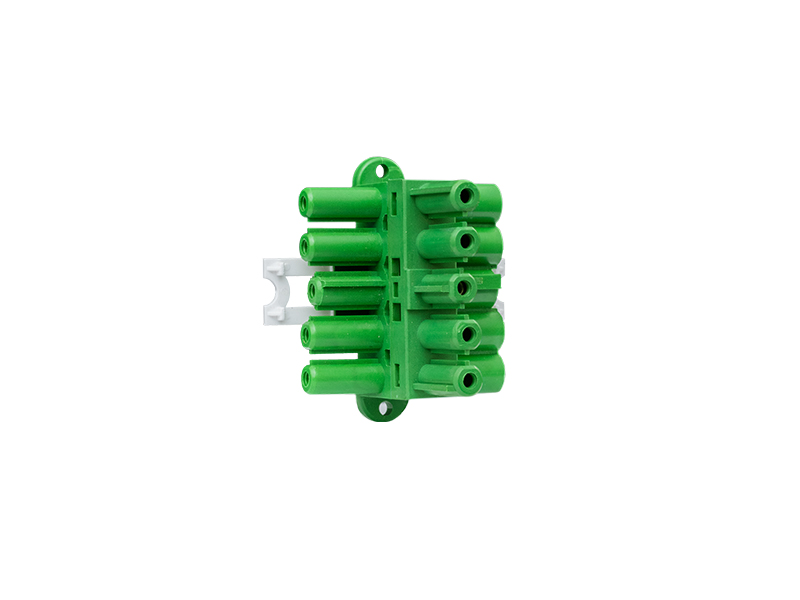

The system is available with various standard 4-way earthed sockets or with a 4-way distribution box with C7/C8 connectors that allow the connection of lighting products without the need for special connectors.

Teknisk data

Material: csNET 5-pole modular cable system

Cablearea: 2,5 mm2

Cabletype: Halogenfree (Fireclass Dca s1 d2 acc. EN50575:2014+A1:2016)

Cable lenghts: 1,0 m - 10,0 m

Maximum load: 3 x 16 A

Nominell voltage: 230/240 V 50/60 Hz

Protecton class: IP 20. CE Approved. TÜV and S-approved sockets.

Byggvarubedömningen: Approved

csNET commercial pdf
csNET - technical pdf
csNET - EPD pdf
