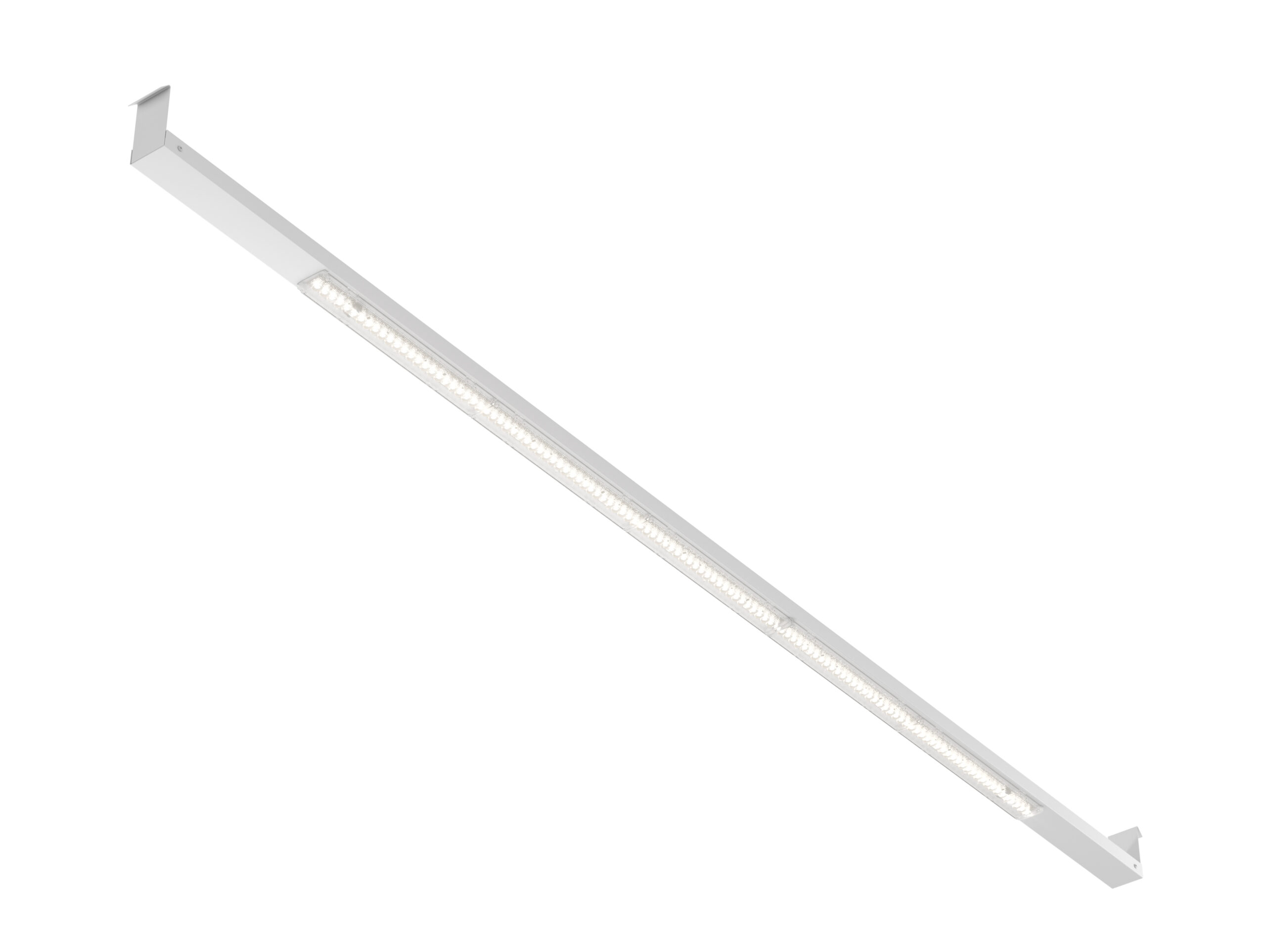

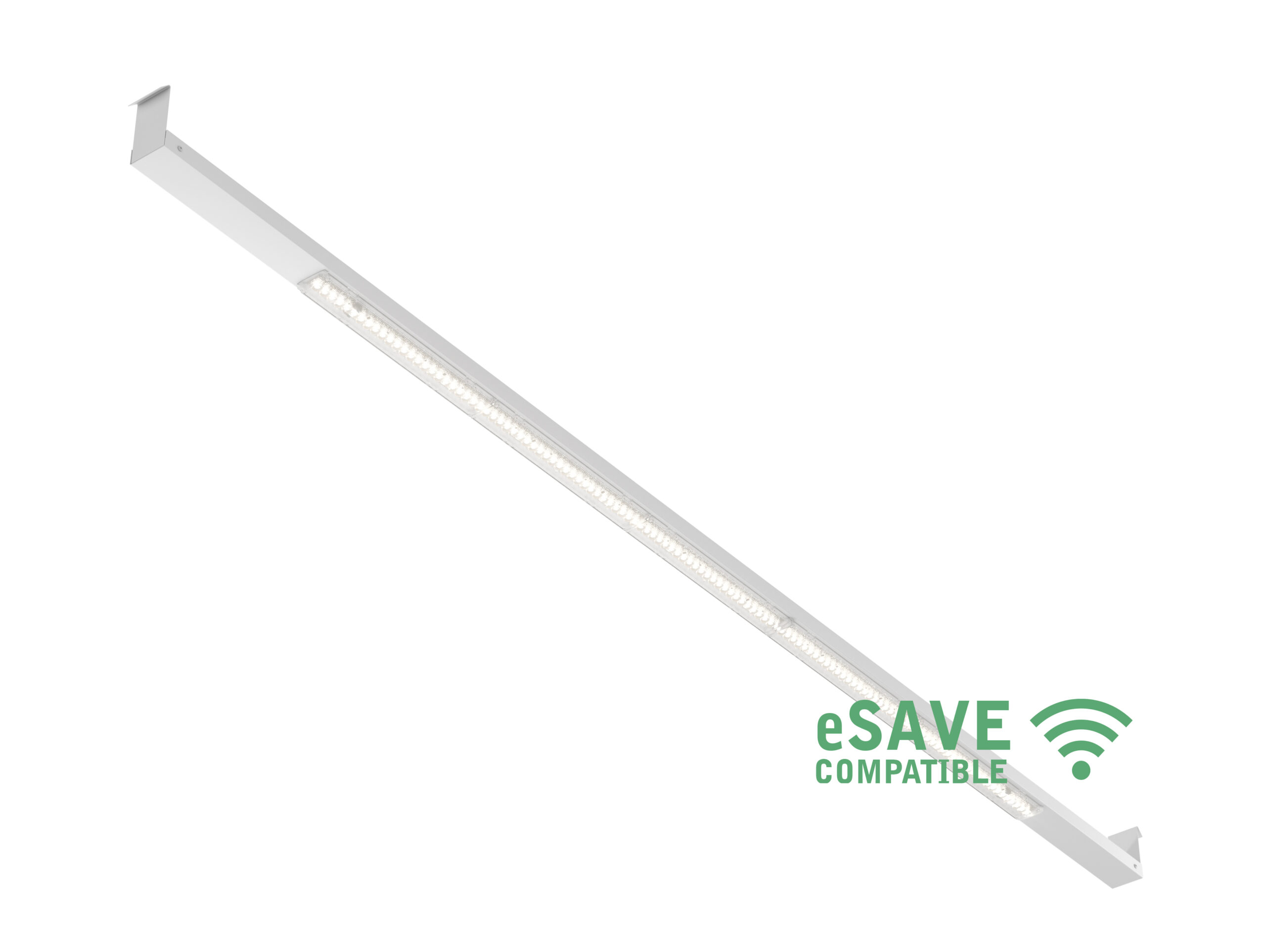

ecoLENS VHO H80 – GRID

Our most energy-efficient LED general lighting luminaire for installation in functional/system ceilings with a 2×2 m or 1.8×1.8 m module.

Available in 3000 K, 3500 K and 4000 K versions. Power from 20 W to a maximum of 47 W with a maximum light output of 175 lumens/watt.

Equipped with optical selectable lens.

Color: RAL 9010. Other on request.

Technical data

Material: Powder coated steel sheet

Height / Width / Length: H 40 x B 40 x L 1640 , 1700 eller 1900 mm

Color temp. [K]: 3000 K / 3500 K eller 4000 K

Luminaire lumen (system power max 47 W): 7 810 lumen (3500 K)

Protection class: IP20. Klass III. CE Approved.

Warranty: 7-years

Maintenance of luminous flux (Ta 25°): L90 > 50 000 h

Lifetime of actuator (Ta 25°): 100 000 h

Product sheet pdf
