modusLENS 260

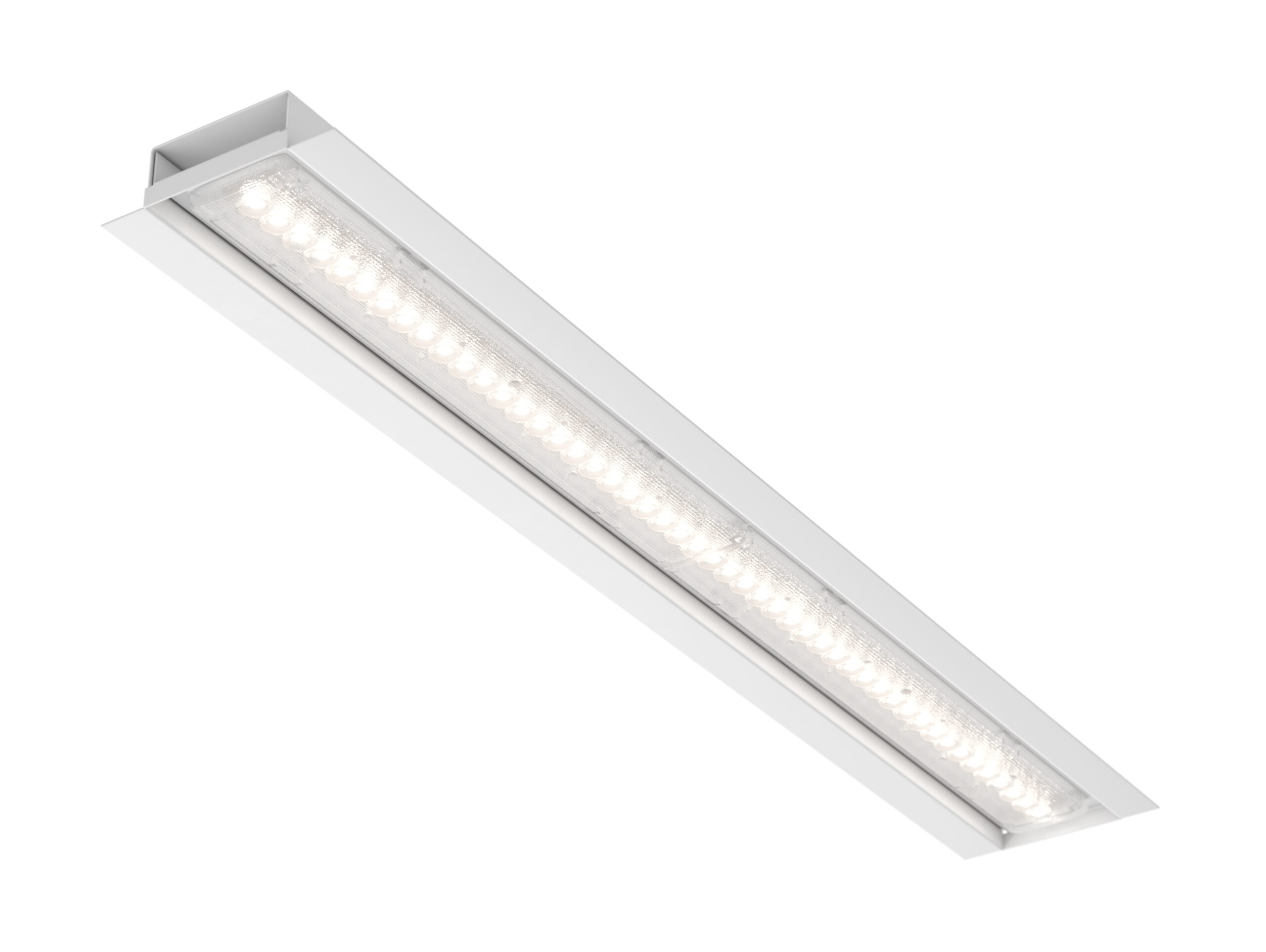

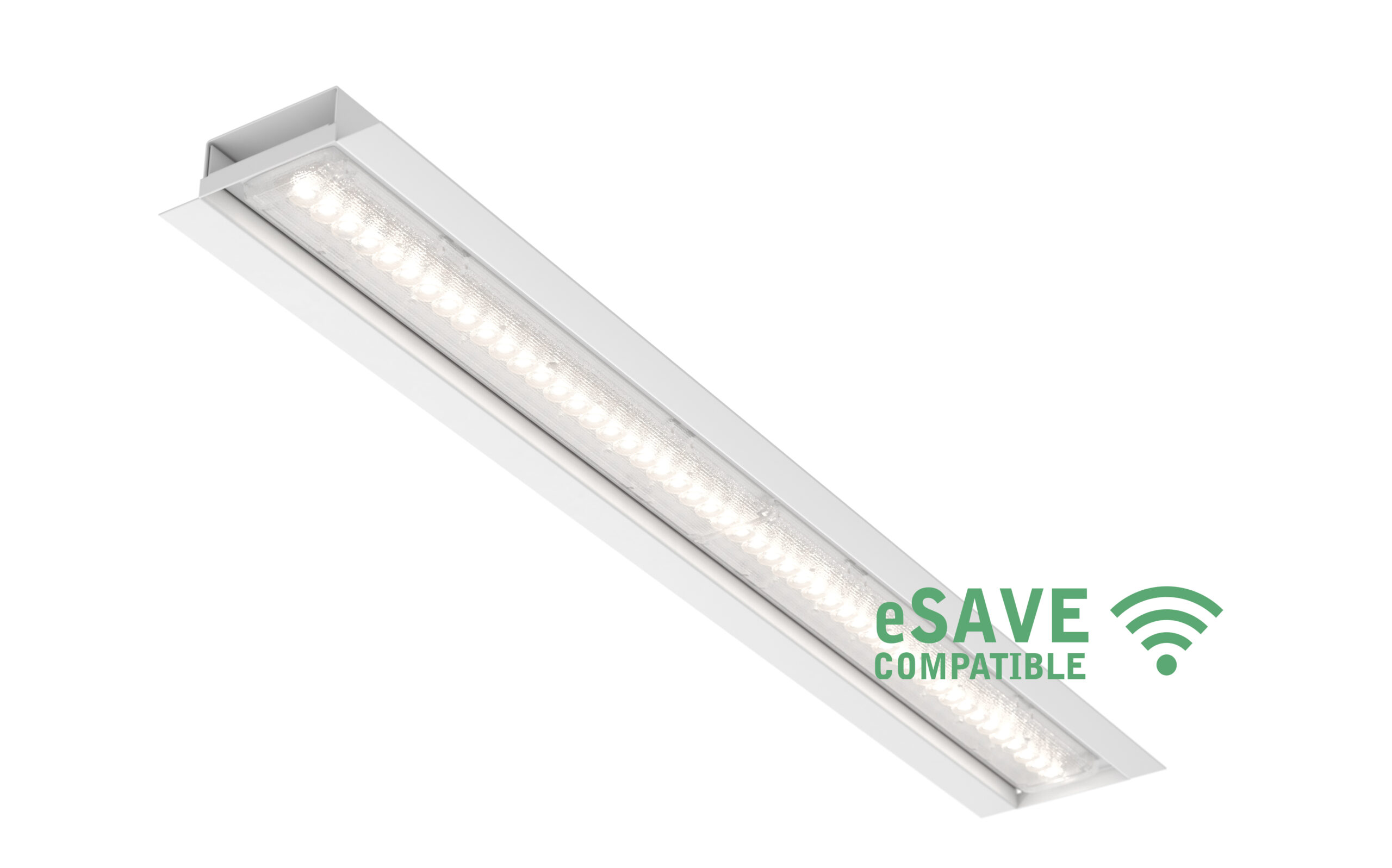

modusLENS is a linear LED-luminaire adapted for recessed installation in T24 grid structure with module 600×600 mm.
4 luminaries can be connected to Caleidoscope LED-driver type ref. 224. Each channel on LED-driver shall be connected with 2 pcs of luminaires using the including Y-splitter to the LED driver 224.
Lumen range can be adjusted directly on the LED-driver 224 from 1500 – 2640 lumen.
An 2,0 meter pre-installed cable between luminaire and LED-driver is included. Additional 2,0 m extension cables are available.
Available with five different optics. Narrow 30°, Medium 60 °, Wide 90°, XL-Wide 110°, double asymmetric and single asymmetric.
7-years LED warranty.
Technical data
Material: Powder coated sheet steel
Dimensions (one unit): 590 x 95 x 24 mm
Energy consumption: See PDF.
Color temp. [K]: 3000 K, 3500 K eller 4000 K, Ra 83
Protection class: IP 20. CE Approved
Warranty: 7-years LED warranty
