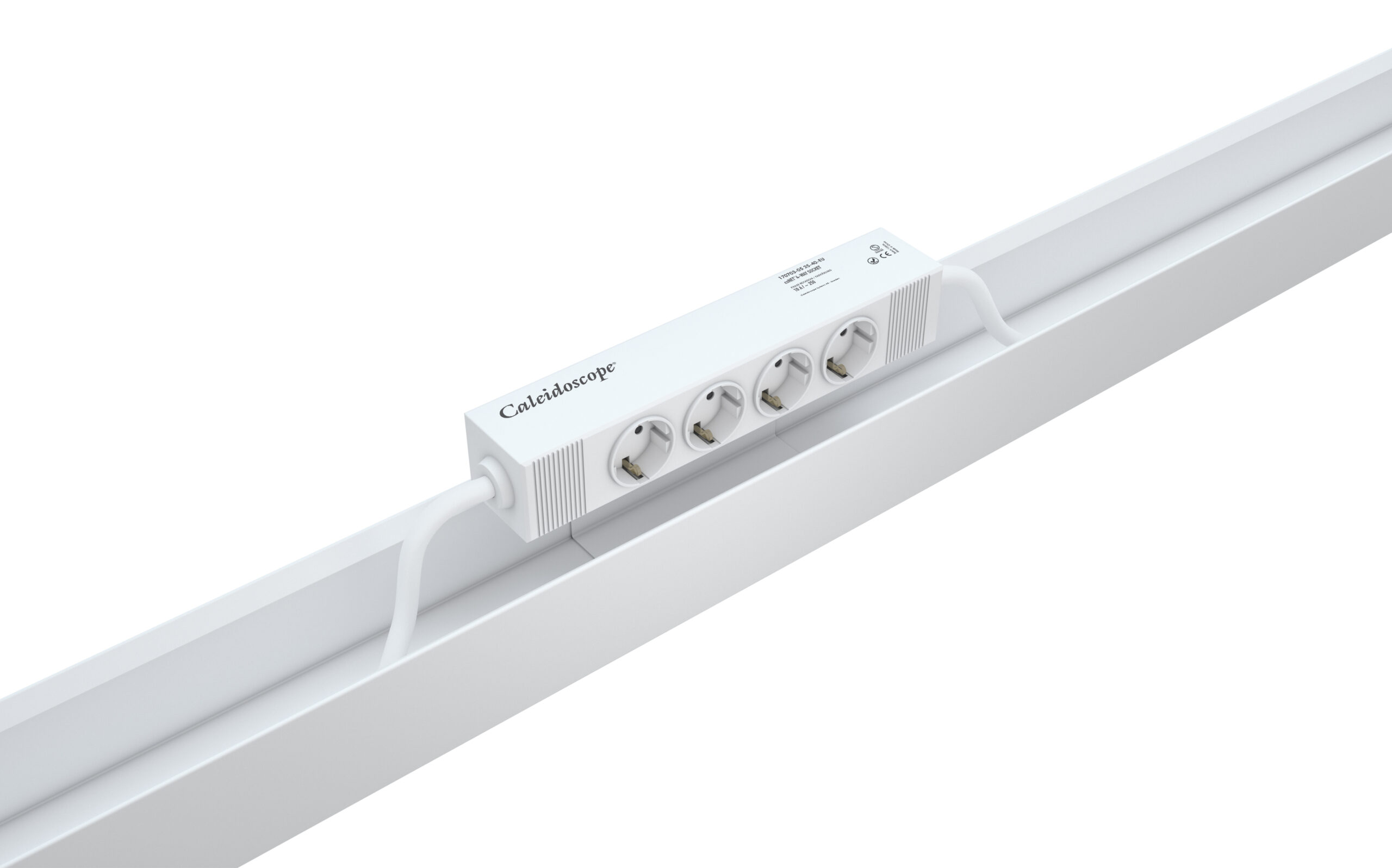

csNET 4-way socket

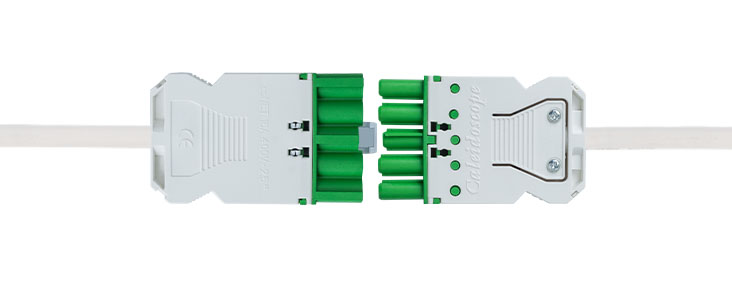

4-way earthed socket with pre-assembled 5-pin female/female connector for the csNET system at each end.

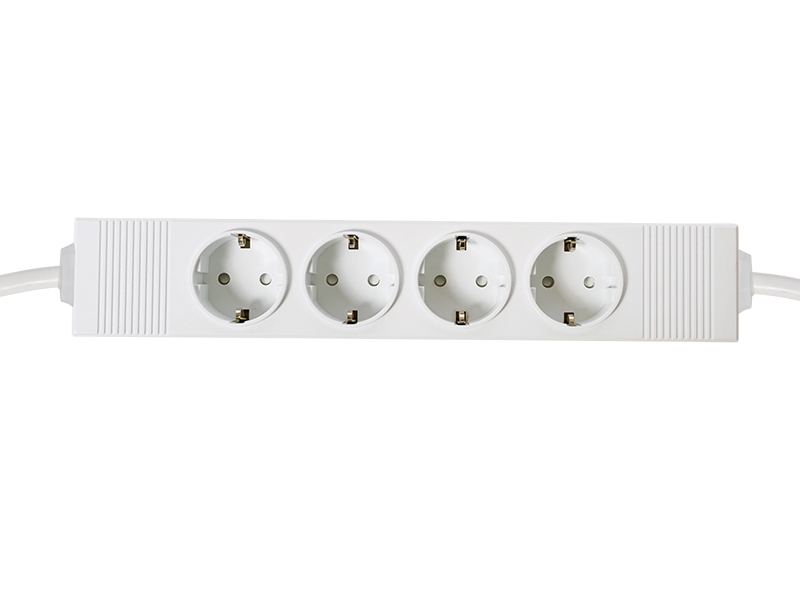

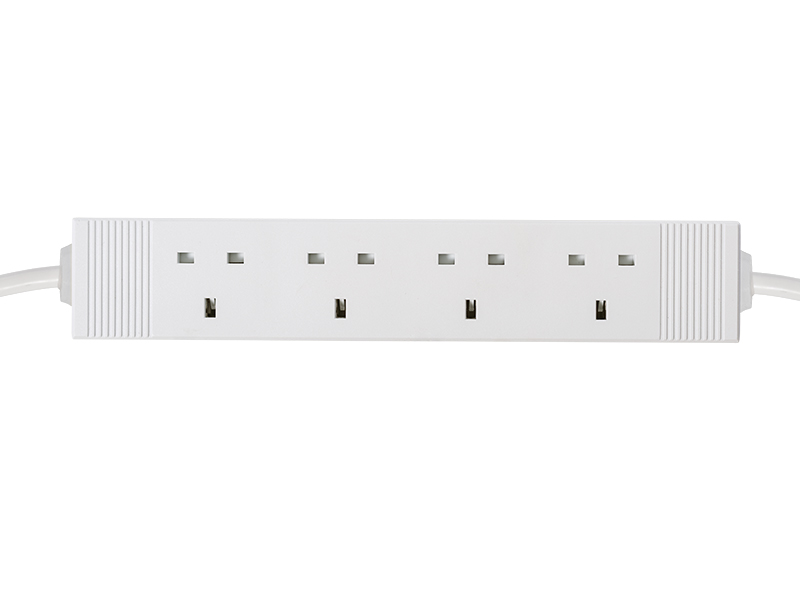

The outlet box is available as type F (Shucko, European standard) and type G (British standard).

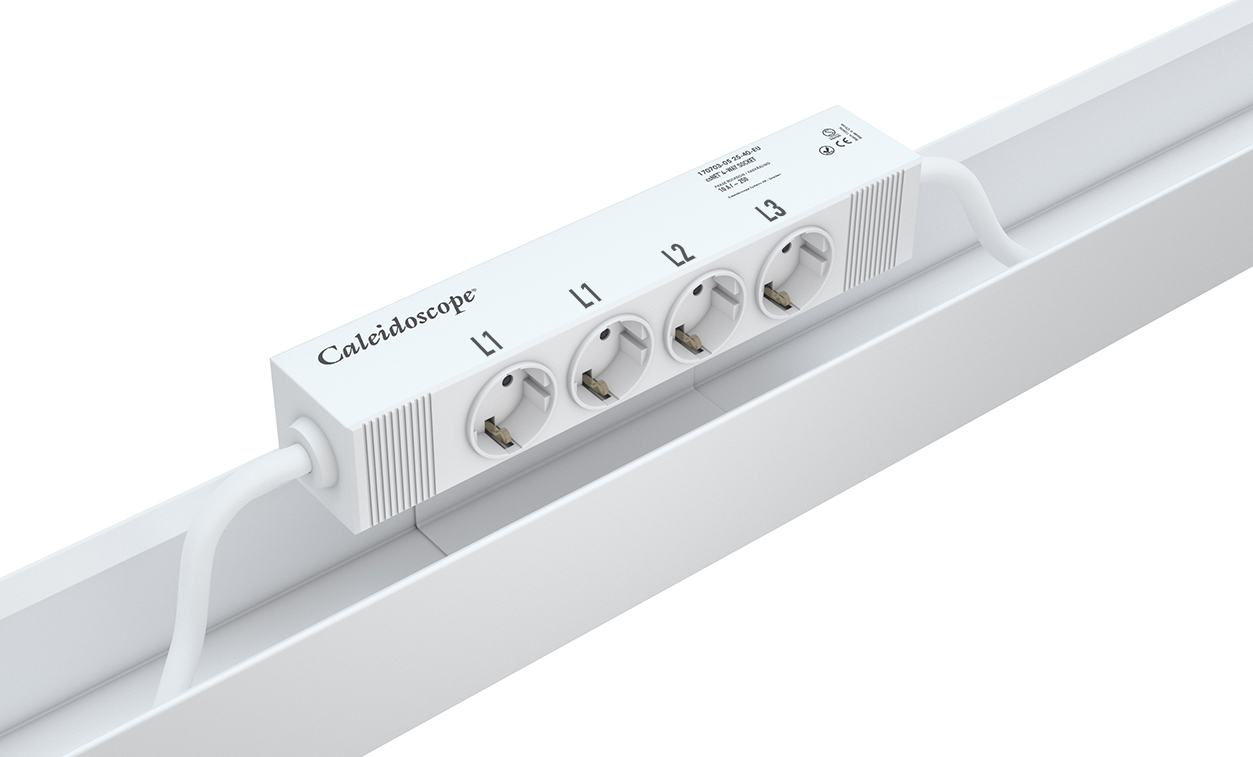

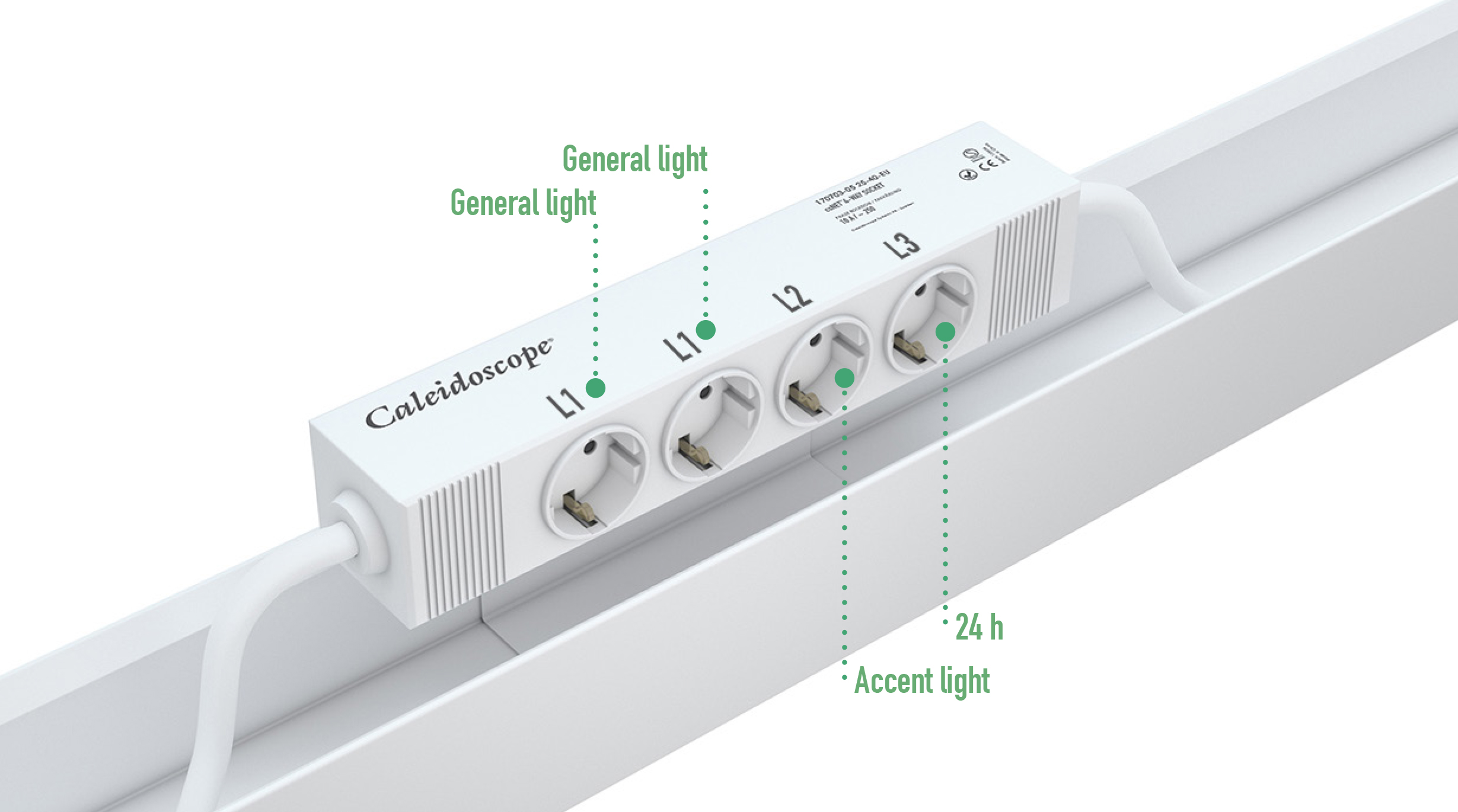

The socket box is equipped with internal phase rotation.
Teknisk data
Material: csNET 5-pole quick connect system
Cablearea: 2,5 mm2
Cabletype: Halogen-free (Fire class Dca s1 d2 according to EN50575:2014+A1:2016)

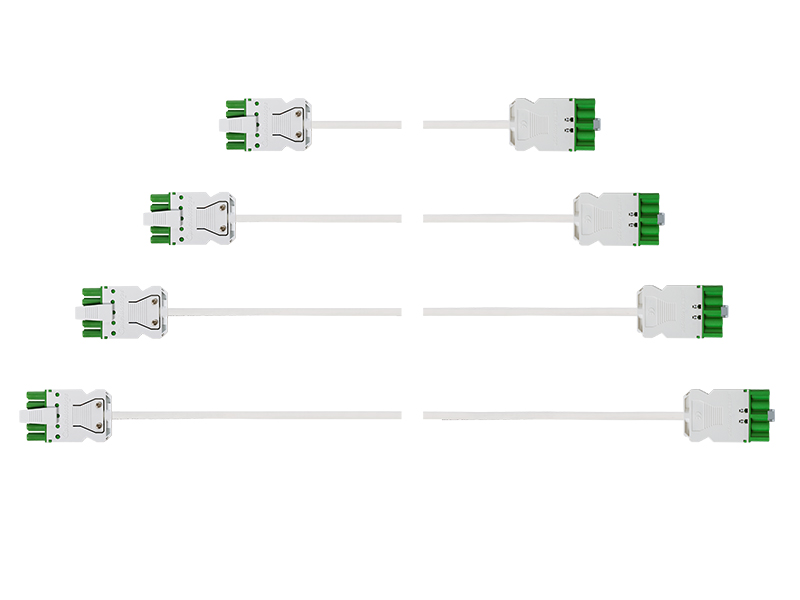

Cable lenghts: 1,0 m - 10,0 m
Maximum load: 16 A, 3 phases
Nominell voltage: 230/240 V, 50 Hz
Protecton class: IP 20, CE Approved. S-marked.
Construction products assessment: Approved
